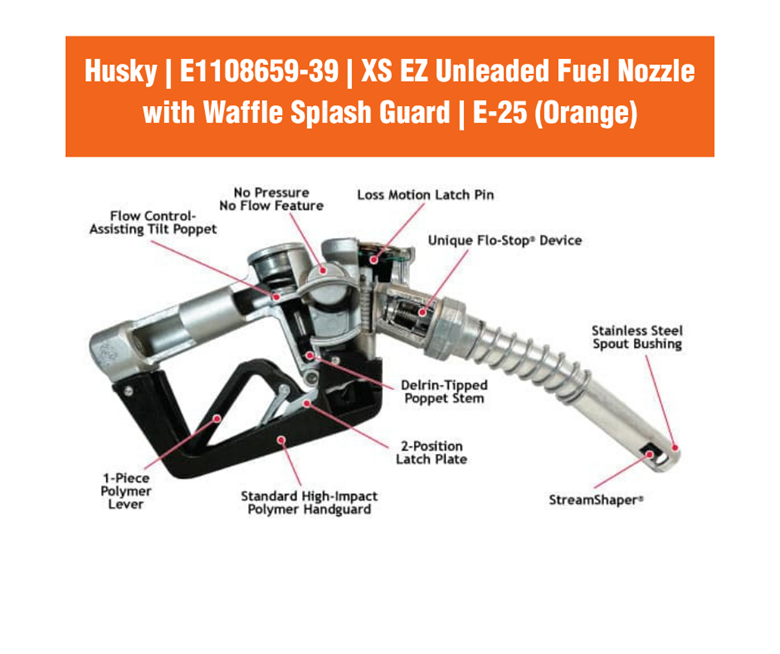

Husky | E1108659-39 | XS EZ Unleaded Fuel Nozzle with Waffle Splash Guard | E-25 (Orange)

Features/Benefits

• XS E25 nozzle shuts off when: the pump shuts off, the gas tank is full, the lever is opened before the pump is turned on, or when the leak detector has not completed the test cycle.
• Stainless steel spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
• Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
• StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
• ADA-compliant EZ Lever reduces the force required to open the main poppet valve by 50%, resulting in a lever operating force ≤5 lbs.
• New poppet seal design in conjunction with new tilt poppet design improves flow control (“to-the-penny” dispensing) and provides enhanced endurance over time.
• Optional cold weather seals are rated to -40°F/C.
• Optional Gilbarco, Tokheim, and Wayne handguards can be fitted with a magnet to trigger the dispenser’s proximity switch, or can be provided without the magnet for dispensers equipped with a standard “flapper” switch.
• All seals are UL approved fluorocarbon compounds to prevent degradation from Ethanol blends.
• Compatible with unleaded and all Ethanol blends through E-25.
